YKJ-77344NL HX1344NL Pulse

YKJ-77344NL HX1344NL Pulse

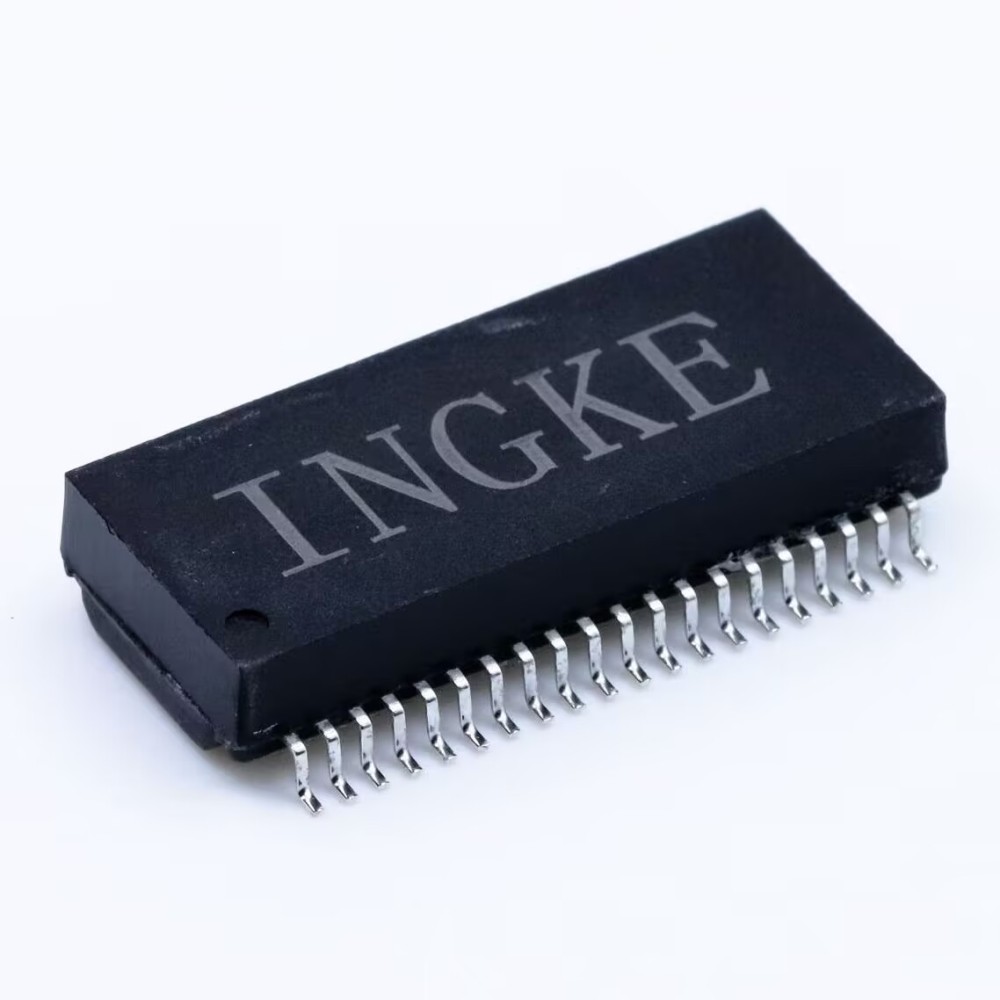

INGKE YKJ-77344NL 100% cross HX1344NL Pulse

Part No.: HX1344NL

INGKE Part No.: YKJ-77344NL

Made in China: INGKE Technology

Description: HX1344NL Pulse Ethernet (POE) LAN Transformer

MOQ: 1PCS

Lead Time: within 1 week

Product: LAN Transformer

Termination Style: SMD/SMT

Frequency Range: 1 MHz to 125 MHz

Inductance: 350 uH

Isolation Voltage: 1.5 kV

Length: 28.10 mm

Width: 12.20 mm

Height: 5.72 mm

Application: 100 Base-T

Operating Temperature: -40℃～105℃

Product Category: Audio Transformers / Signal Transformers

Moisture Sensitivity Level (MSL): 1 (Unlimited)

RoHS Compliant and REACH

100% compatible, 100% test, warranty for 60 months

Factory with UL, supplier of Marvell & Honeywell

Chinese UL factory for producing HX1344NL Pulse LAN Transformer
