YKG-77549NL HX5149NLT Pulse

YKG-77549NL HX5149NLT Pulse

INGKE YKG-77549NL 100% cross HX5149NLT Pulse

Part No.: HX5149NLT

INGKE Part No.: YKG-77549NL

Made in China: INGKE Technology

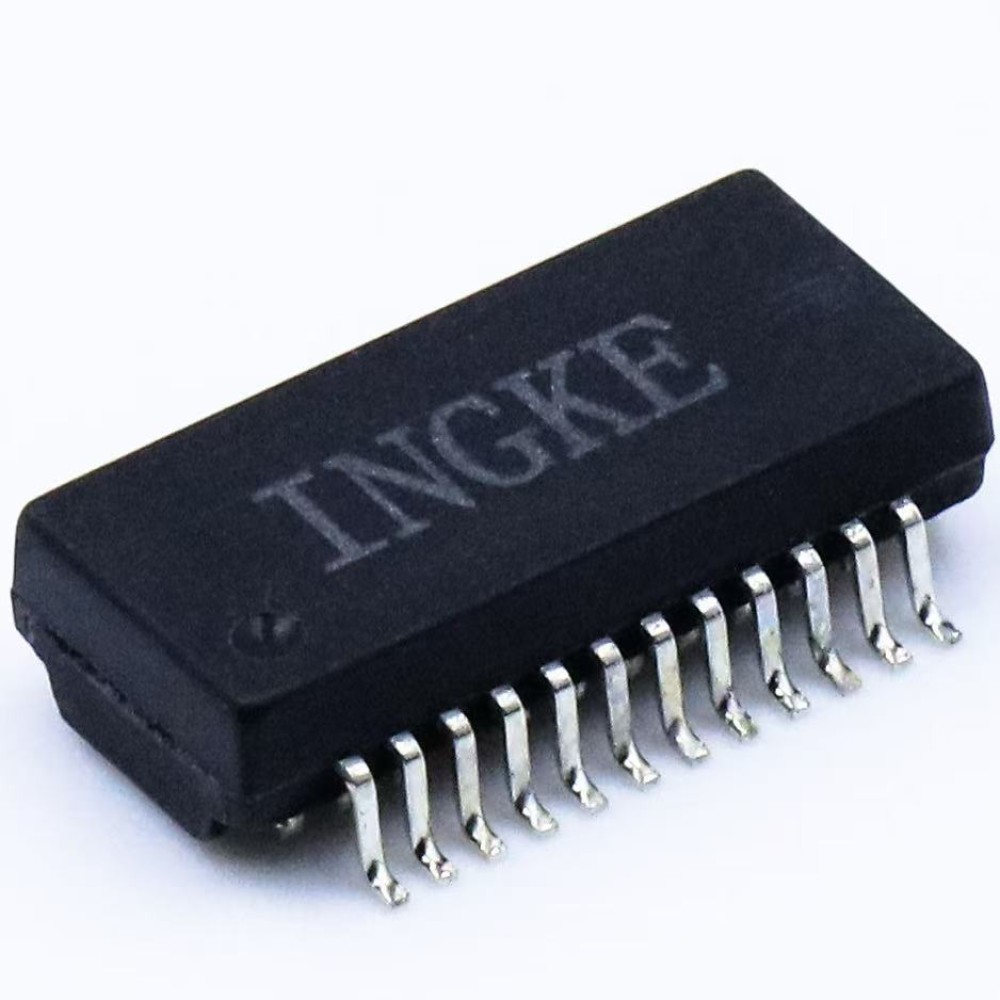

Description: HX5149NLT Pulse 1CT:1CT LAN Transformer

MOQ: 1PCS

Lead Time: within 1 week

Product: LAN Transformer

Termination Style: SMD/SMT

Frequency Range: 1 MHz to 125 MHz

Inductance: 350 uH

Isolation Voltage: 1.5 kV

Length: 17.78 mm

Width: 9.91 mm

Height: 3.20 mm

Application: 1000 Base-T

Operating Temperature: -40℃～105℃

Product Category: Audio Transformers / Signal Transformers

Moisture Sensitivity Level (MSL): 1 (Unlimited)

RoHS Compliant and REACH

100% compatible, 100% test, warranty for 60 months

Factory with UL, supplier of Marvell & Honeywell

Chinese UL factory for producing HX5149NLT Pulse LAN Transformer
