Product Code: HX6096NLT
Availability: In Stock
$1.00
Ex Tax: $1.00

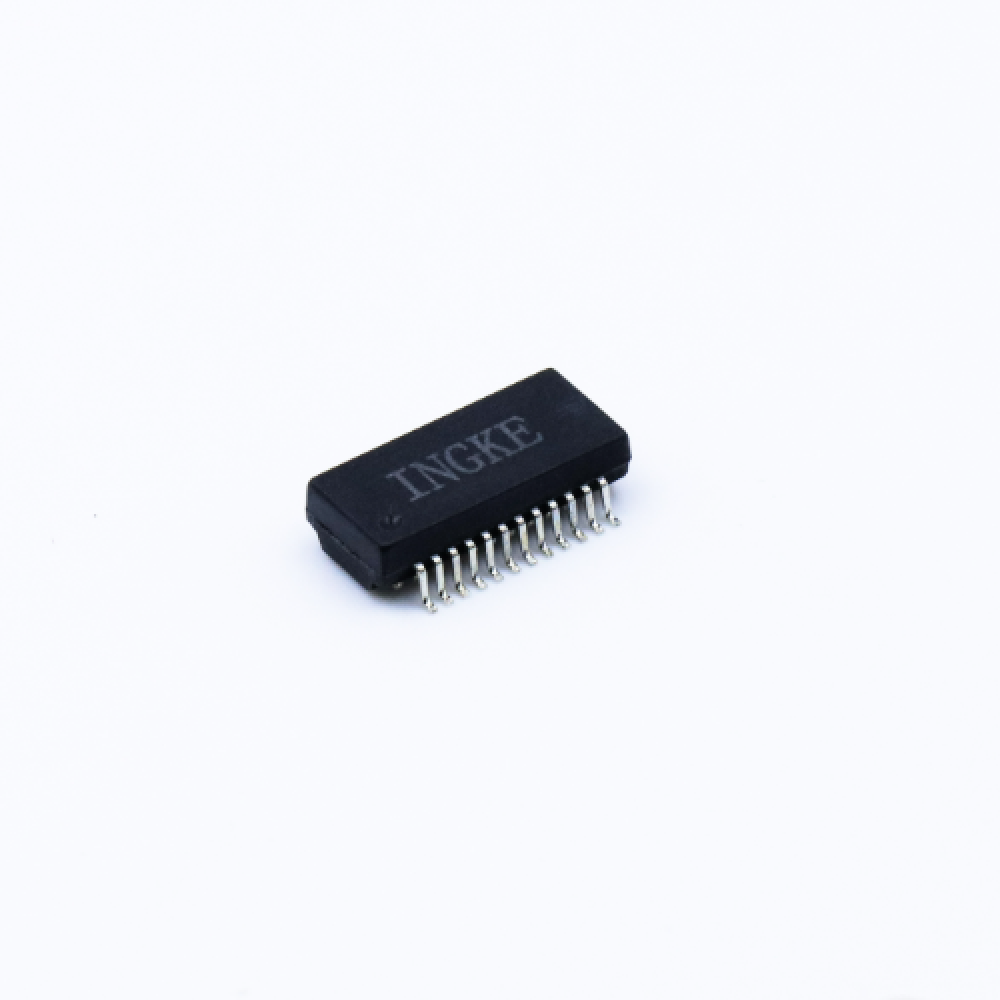

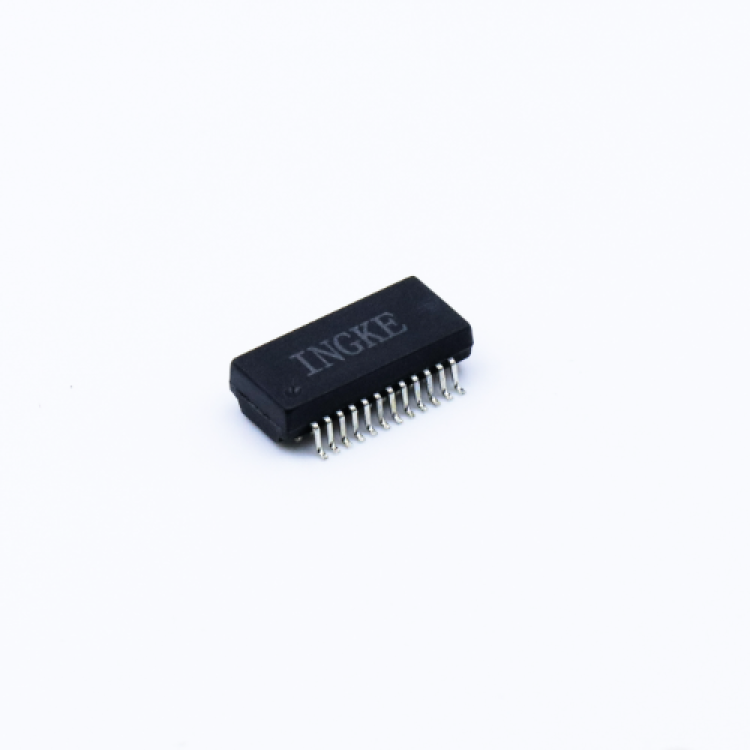

YKJ-60962NL HX6096NLT Pulse



INGKE YKJ-60962NL 100% cross  HX6096NLT Pulse



Part No.:HX6096NLT

INGKE Part No.: YKJ-60962NL

Made in China: INGKE Technology

Description: HX6096NLT Pulse 350µH Power over Ethernet (PoE) Pulse Transformer

MOQ: 1PCS

Lead Time: within 1 week



Product: LAN Transformers

Termination Style: SMD/SMT

Frequency Range: 1 MHz to 125 MHz

Inductance: 350 uH

Isolation Voltage: 1.5 kV

Length: 18.16mm

Width: 12.20mm

Height: 6.60mm

Application: 100 Base-T

Operating Temperature: -40°C ~ +105°C

Product Category: Audio Transformers / Signal Transformers

Moisture Sensitivity Level (MSL): 1 (Unlimited)

RoHS Compliant and REACH



100% compatible, 100% test,  warranty for 60 months

Factory with UL, supplier of Marvell & Honeywell

Chinese UL factory for producing HX6096NLT Pulse LAN Transformers
